CADMark software saves time as M.U.T.C.D. standards (US & Canada) are built into the program and the software can be used to generate professional roadway drawings on - fly.

Use CADMark v14 to generate

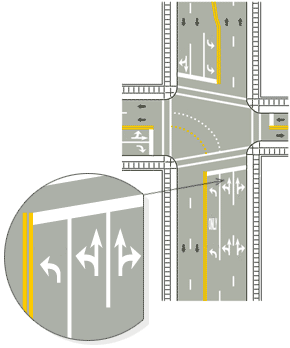

· Pavement Markings, Traffic Signs & Pavement Text
· Intersection Sight Triangles, Stopping & Passing Sight Distances
· Temporary Traffic Control Zone (Workzone)
· Parking Spaces

Major software features

· Draw pavement markings, rumble strips, raised markers, chevrons & parking
· Create markings between two points or parallel to roadway elements or convert roadway element into markings
· Insert traffic signs, arrows, symbols, pavement text, and traffic signals
· Generate work zones alone roadway horizontal alignment
· Incorporate work zone devices e.g. traffic cones, traffic signs
· Continue to generate roadway markings
· Label markings
· Customize markings, text, symbols, signs, work zone and buffer area
· Calculate and generate sightlines based on design vehicle, design speed, time gaps, superelevation and skew angle
· Report (i.e. paint quantity, sightline distances, number of parking spaces, etc)

· AutoCAD 2010 / 2011 / 2012 / 2013 / 2014 / 2015
· Windows XP & up
